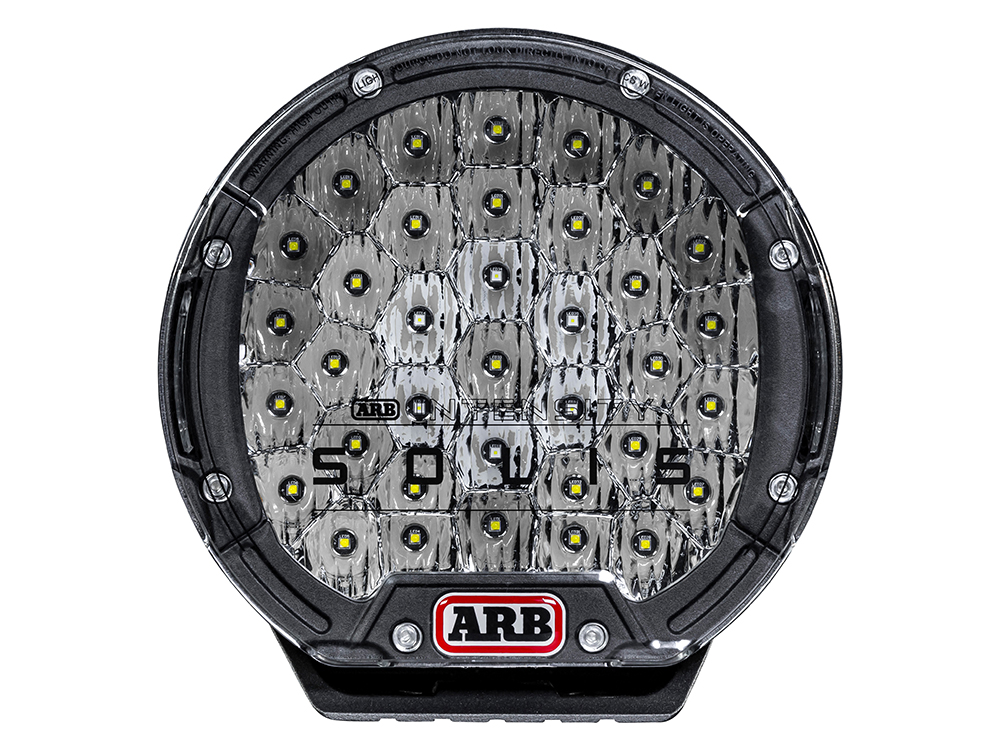

ARB Intensity Solis 36 Spot Light
Code: SJB36S
Spot light / 36 LEDs / Single
Description
The ARB Intensity Solis provides a whole new level to the ARB Intensity range of driving lights and bars. Introducing digital dimming control and providing a massive 1 lux @ 1,032m for an individual spot beam via the 30 x 4W combined with 6 x 10W high output OSRAM LEDS provides a smooth driving beam.
Revolutionary update of the Intensity light
New colour design and shape|
New inter-changable bezels
Superior grade LEDs and electronics
Digital dimming control
Unique ARB engineered reflectors
Input – 10 – 30V
Power – 165W
Current draw – 12.4A @132.V
Output – raw – 18,178 lumens
Output – effective – 9,546 lumens
1 Lux reading – 1,032m
Spread – 6 degrees
Input cable length – 450mm
Operating temperature – -40•C to +65*C
Colour temperature – 5,700 Kelvin
Weight – 3.3kg
Connector – 4-pin AT waterproof plug
Dimensions (W x H x D) – 225 x 220 x 120mm
High Pressure Die Cast Aluminium Bracket & Housing
Scalloped back – more bar fitment possible
Improved heatsink and UV stabilization
Adjustable bracket
Pressure tested breather
Brackets
Various mounting options
Vertical & horizontal mounting
Simplified fitting
Torx security fasteners
Solis – Touchpad
Silicone touch pad
Intuitive feel touch – no eyes off the road
Simple 3 button control
Easy fitment
Cable can be directed at back or out bottom
Percentage changes – 5%, 25%, 50%, 75%, 100%
Silicone sleeved for durability and protection
58mm (L) x 10mm (D) x 25mm
The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected
Compatible With Linx
Solis can be fully integrated into LINX. The customer will need to purchase a patch lead that is simple to install + set up the new light and its features within the LINX system. Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis icons and function.
Available in UK only.
