Description

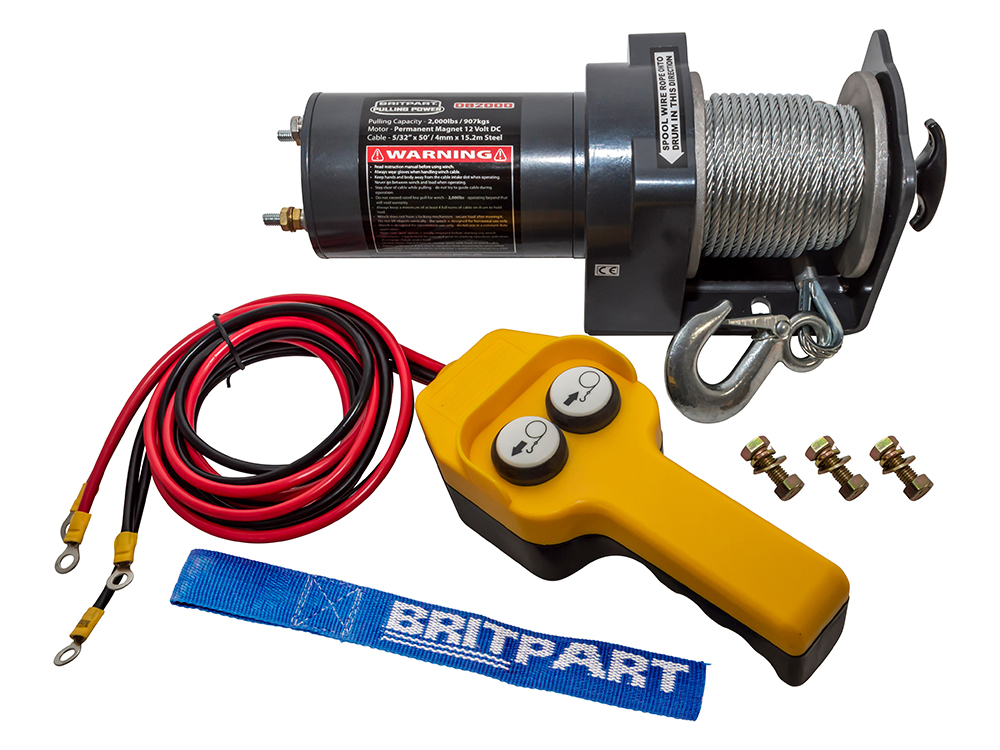

DB2000
2,000lbs Steel cable 12 volt
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
Features
> 1.0Kw (1.5Hp) permanent magnetic DC motor
> Planetary gear system for fast line speed
> Free spooling
> Power in and power out
> Low electric current
> Tension plate to prevent rope entanglement
> 24 month warranty
Specification
Rated line pull – single line – 2,000lbs / 907kgs
Gear reduction ratio – 153:1
Motor (series wound) – 1.5Hp / 1.0Kw
Drum size (D x L) – 1.26 x 2.8″ / 32 x 71mm
Cable supplied – 0.16″ x 50′ / 4mm x 15.2m – Cable with break force 4,000lbs
Winch Motor – Rated at IP65 for waterproofness & dustproofness
Winch Solenoid – Rated at IP65 for dustproofness
Overall dimension (L x W x H) – 12.6 x 4.13 x 4.35″ / 320 x 105 x 110.5mm
Net weight – 14.6lbs / 6.6kgs
Mounting bolt pattern – 1.89 x 3″ / 48 x 76mm
Important
Winch suitable for small vehicle and trailer applications only.
A full range of winching equipment is also available from Britpart – including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
