Description

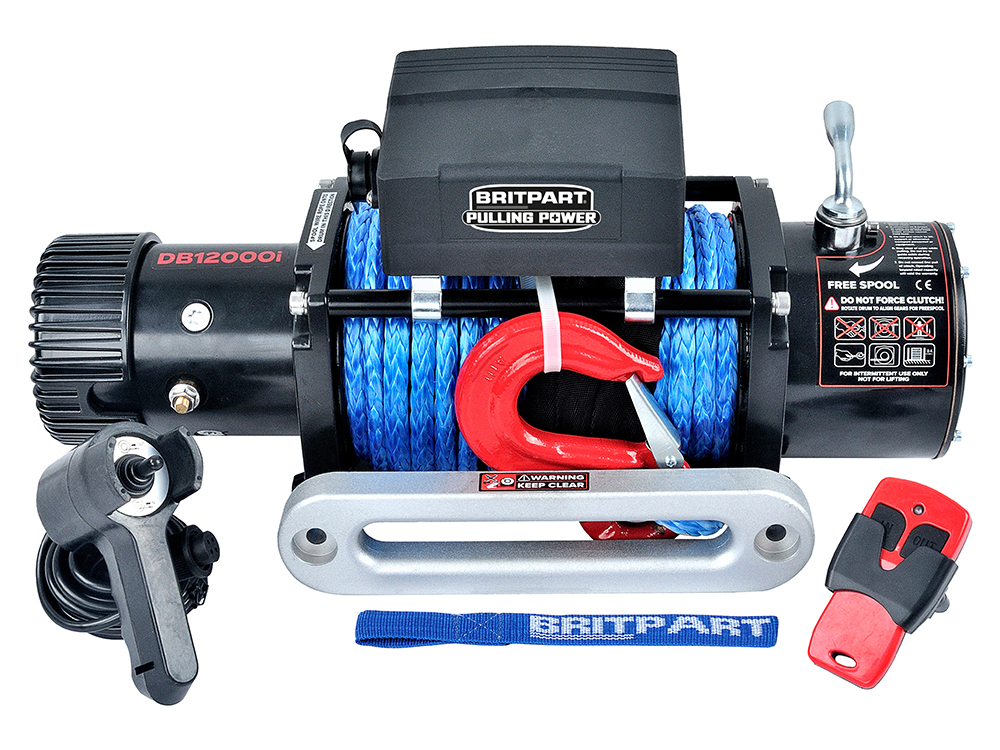

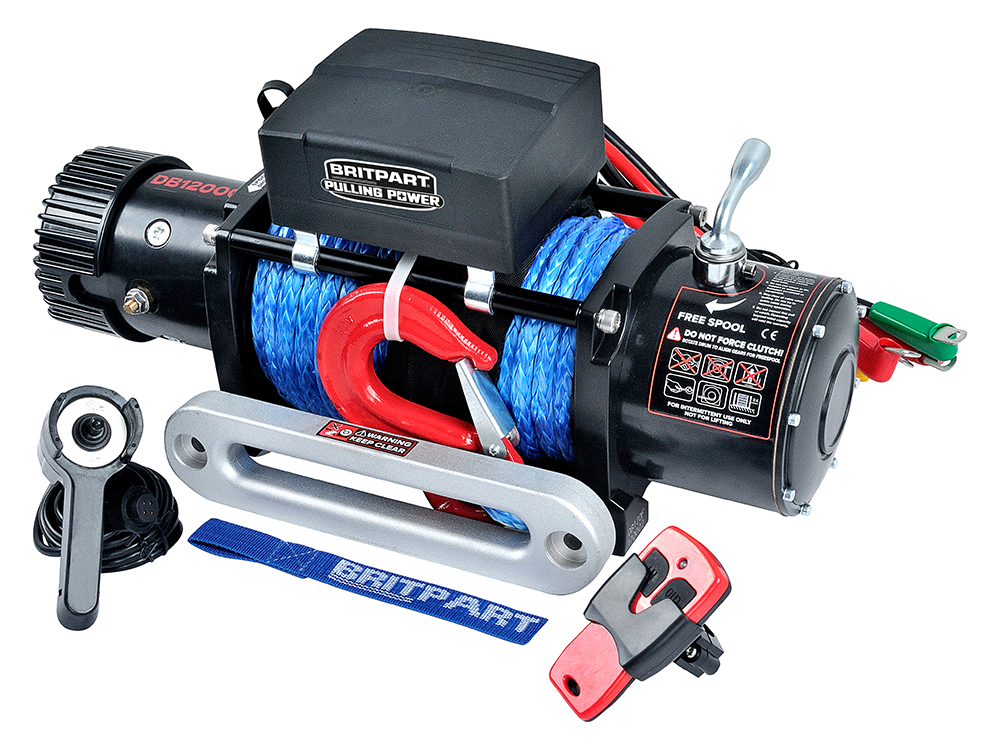

12,000lbs Dyneema rope 12 volt
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature – a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
> 3.6Kw (4.8Hp) heavy-duty series wound DC motor
> Weather and dustproof contactor controls for longer life and improved amperage draw
> Planetary gear system for fast line speed
> Automatic load-holding brake
> Free spooling
> Power in and power out
> Low electric current
> Hardened drum
> Dyneema rope with break force – 25,800lbs
> 24 month warranty
Specification
Rated line pull – single line – 12,000lbs / 5,443kgs
Gear reduction ratio – 294:1
Motor (series wound) – 4.8Hp / 3.6Kw
Drum size (D x L) – 2.5 x 9″ / 67 x 228mm
Cable supplied – 0.43″ x 91.9′ 11mm x 28m – Dyneema rope with break force 25,800lbs
Winch Motor – Rated at IP67 for waterproofness & dustproofness
Winch Solenoid – Rated at IP54 for dustproofness
Overall dimension (L x W x H) – 21.57 x 6.57 x 11.77″ / 548 x 167 x 299mm
Net weight – 72.8lbs / 33.0kgs
Mounting bolt pattern – 10 x 4.5″ / 254 x 114.3mm
A full range of winching equipment is also available from Britpart – including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important – When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch – DB1014
